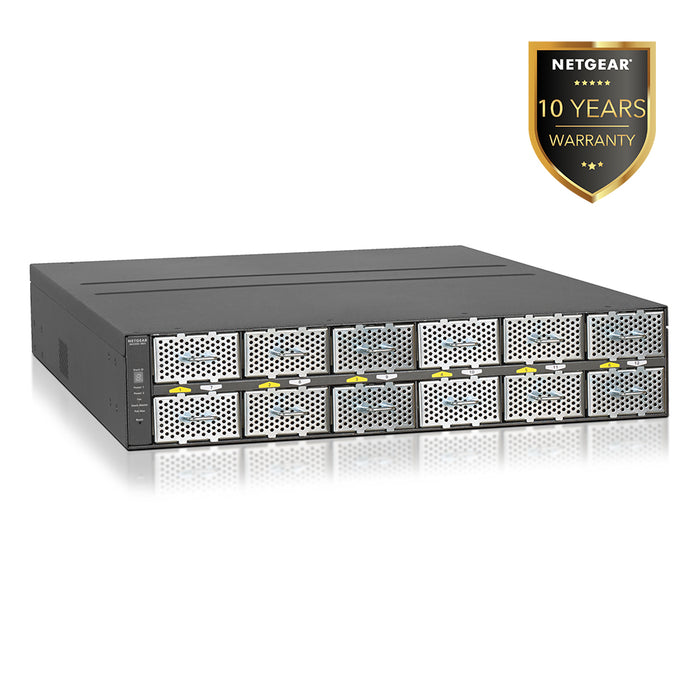

Netgear XSM4396K0 - 12 Slot Modular Stackable Managed Switch Full PoE+ (Warranty 10 Years)

Terjual habis
Rp 283.575.600

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

  • Cost effective 1G access layer in campus LAN networks, and high performance 10G distribution layer for midsize organizations networks
  • Zero Touch AV-over-IP with pre-configured L2 Multicast on all 1G models (1G AV encoders and decoders) and 10G models (SDVoE-ready)
  • Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including Policy Based Routing, RIP, VRRP, OSPF and PIM
  • Innovative mixed "Spine and Leaf", 1G and 10G stacking with nonstop forwarding and hitless failover redundancy
  • Low acoustics, half-width 16-port and 24-port 10G models can be paired in a single rack space for redundant Top of Rack
  • Up to 384 (Gigabit) ports, 768 (10 Gigabit) ports, 192 (40 Gigabit) ports or a combination in a stack seen as one “logical” switch
  • PoE+ (30 watts per port) with hot swap, redundant power supplies and full provisioning
  • 48- and 96-port 10G models’ ultra-low latency and scalable table size with 128K MAC, 8K ARP/NDP, 4K VLANs, 12K routes
  • Mixed Stack of 1G and 10G models provides 16K MAC, 2K ARP/NDP, 4K VLANs and 512 routes
  • SDN-Ready OpenFlow 1.3 support for maximum investment protection
Spesifikasi Teknis

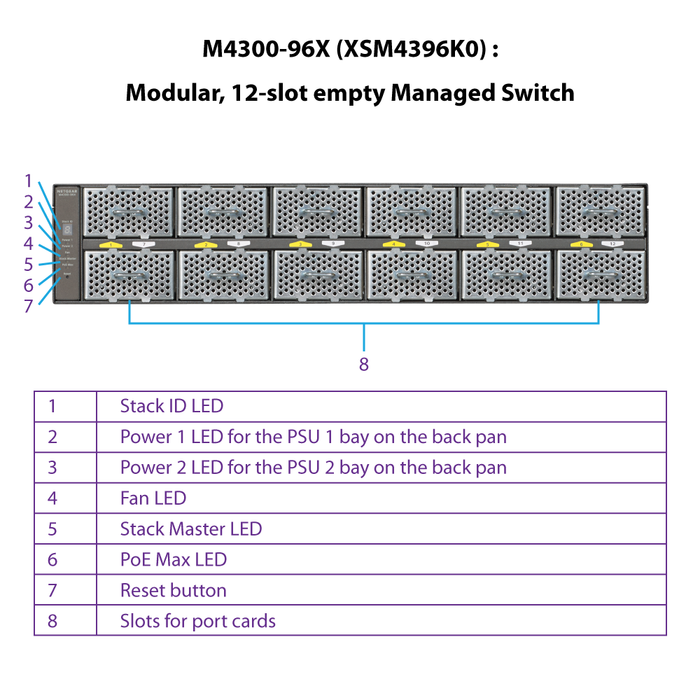

Product Number M4300-96X (XSM4396K0)
Model Description 12-slot 2RU empty switch (no PSU)
  • Without PoE: 35.8dB @ 25°C (77°F)
  • With max PoE load: 66.8dB @ 25°C (77°F)
Power Consumption (Max)
  • Without PoE: 566 Watts
  • With 1,440W PoE: 2,006 Watts
10G RJ45 Ports
  • 0 to 96 x 10GBASE-T (Fast Ethernet, 1G, 2.5G, 5G, and 10G speeds)
  • APM408C is the 8 x 10GBASE-T port card
  • APM408P is the 8 x 10GBASE-T PoE+ port card
10G Fiber SFP+ Ports
  • 0 to 96 x SFP+ (1G and 10G speeds)
  • APM408F is the 8 x SFP+ port card
40G Fiber QSFP+ Ports
  • 0 to 24 x QSFP+ (4x10G and 40G speeds)
  • APM402XL is the 2 x 40G QSFP+ port card
Power over Ethernet
  • 0 to 48 x 10G PoE+ 30W
  • Only the top 6 slots (out of 12) can support PoE+ operation
  • APS1200W PSU is preferred for PoE+ operation
PoE Budget (Watts)
  • 0W PoE Budget with 1 x APS600W PSU @ 110V/220V AC input
  • 634W PoE Budget with 2 x APS600W PSUs in shared EPS mode @ 110V/220V AC input
  • 720 W PoE Budget with 1 x APS1200W PSU @ 110V/220V AC input
  • 720 W PoE Budget with 2 x APS1200W PSUs in redundant RPS mode @ 110V/220V AC input
  • 1,084 W PoE Budget with APS600W + APS1200W PSUs in shared EPS mode @ 110V/220V AC input
  • 1,440 W PoE Budget with 2 x APS1200W PSUs in shared EPS mode @ 110V/220V AC input
Feature Set Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing)

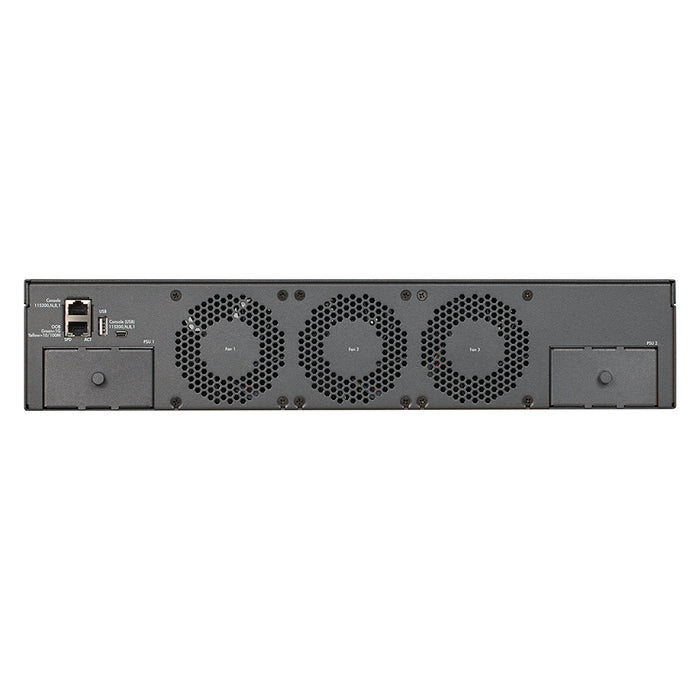

Management Ports
  • 1G Ethernet service port for out-of-band management (OOB, RJ45)
  • RS232 straight-through serial RJ45 for local management console
  • Mini-USB port for local management console
  • USB port for local storage, logs, configuration or image files

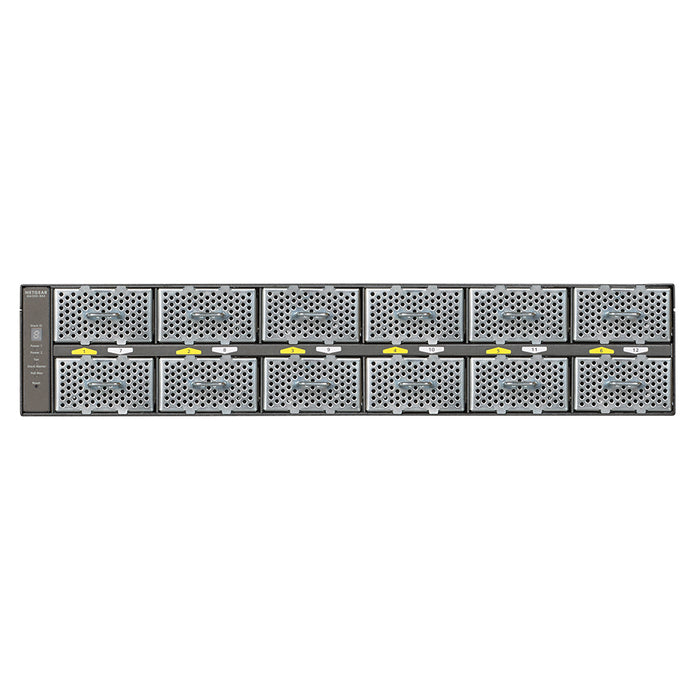

Form Factor
  • 2RU modular switch that comes either empty or in a starter kit with 48 SFP+
  • Full width with dual, redundant modular PSUs for business continuity
  • APS600W is the 600W power supply unit for non-PoE applications
  • APS1200W is the 1,200W power supply unit for PoE applications
Warranty 10 Years Limited Hardware Warranty
