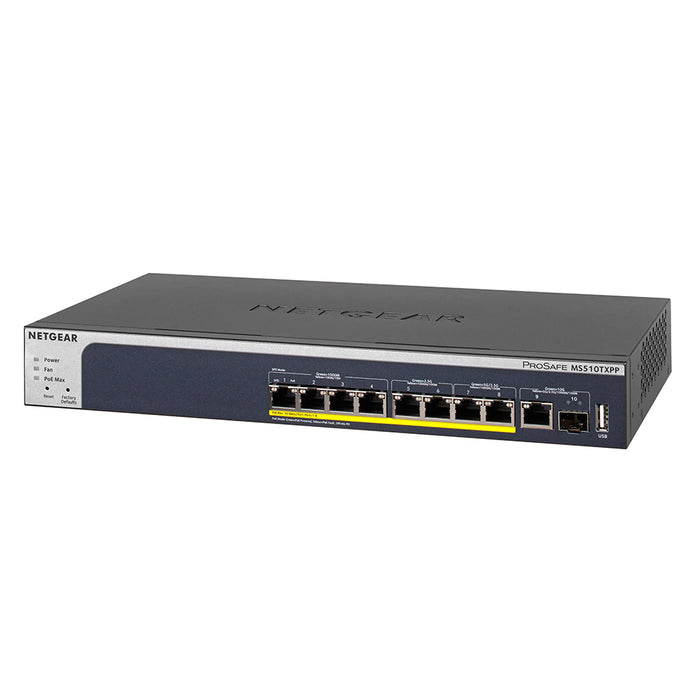

Netgear MS510TXPP - 8 Port PoE+ Multi Gigabit Smart Managed Pro Switch (Warranty 10 Years)

Rp 16.500.000

Businesses need to be ready for future expansion: with incoming new multispeed devices, their wired network needs to expand its reach and scope to support speeds greater than 1 Gigabit. The IEEE 802.3bz standard paved the way for new 2.5 Gigabit and 5 Gigabit speeds in addition to legacy 1 Gigabit and 10 Gigabit per second. New servers, workstations, storage devices, and motherboards are coming with 802.3bz (NBASE-T) Multi-Gigabit Ethernet for 2.5X to 5X faster speeds up to 100 meters (323 feet) on legacy CAT5e / CAT6 cables.

  • Traffic Management
    • Auto Negotiation of speed and duplex modes
    • IEEE 802.3x Flow Control
    • Dynamic MAC address management
    • IEEE 802.1Q-based VLAN
    • Auto Voice VLAN
    • Auto Video VLAN
    • VLAN routing
    • QoS based on WRR, strict priority, or both
    • Port-based and IEEE 801.2p-based QoS
    • TCP/UDP-based QoS DiffServ IPv4 and IPv6-based QoS
    • DSCP Support
    • Rate Limiting (ingress, or egress)
    • Link Aggregation and LACP
  • Security
    • MAC lockdown
    • MAC lockdown by number of MACs
    • IEEE 802.1x port authentication - EAP
    • Dynamic VLAN Assignment
    • Guest VLAN
    • TACACS+
    • 3 HTTPS /SSL versions
    • TLS session
    • Trusted MAC
    • IPv4, L4-based Access Control List (ACL)
    • IPv6-based ACL
  • Multicast Efficiency
    • IGMP snooping, v1, v2 and v3
    • IGMP Snooping querier
    • Blocking of unknown multicast traffic
    • MLD snooping
  • Spanning Tree, Routing and Stacking
    • IEEE 802.1D, IEEE 802.1w RSTP and MSTP
    • Option to enable/disable BPDU flooding when STP is disabled
    • IPv4 / IPv6 Static routing with 32 static routes each
    • Hosted ARP table size of 512
  • Reliability, Performance and Troubleshooting
    • Port mirroring both on ingress and egress traffic
    • Jumbo frame support
    • Broadcast Storm control
    • Cable diagnostics
    • Loop Detection
    • DoS Prevention
    • IEEE 802.1ab LLDP
    • LLDP-MED
    • Dual Image
    • SNTP
    • Option to enable/disable the flooding of EAPOL when 802.1x is disabled
    • Protected ports
    • DNS client
    • DHCP client
    • DHCP snooping
    • Ping and traceroute client
    • Energy Efficient Ethernet (IEEE 802.3az) compliant
  • Switch Management
    • Web browser-based management GUI
    • Smart Control Center Software for multi-switch management
    • IP Access List
    • IPv6 Management
    • Configurable Management VLAN
    • SNMP v1/v2c and v3
    • Standard MIBs (RFC1213, RFC1643, and RFC1493)
    • RMON group 1, 2, 3, 9
    • Firmware Upgrade through Smart Control Center (TFTP)
    • Firmware download (to switch) and upload (to server) through TFTP/HTTP
    • Configuration and Image Upload (to PC) through HTTP
    • Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
    • Memory & FLASH log
    • Syslog (server)
    • System password protection
Spesifikasi Teknis
Product Number MS510TXPP
Model Description 8-Port PoE+ Multi-Gigabit Smart Managed Pro Switch with 10G Copper/Fiber Uplinks (MS510TXPP)
Gigabit Ports 4 (10M/100M/1G)
2.5-Gigabit ports 2 (100M/1G/2.5G)
5-Gigabit ports 2 (100M/1G/2.5G/5G)
10-Gigabit copper ports 1 (100M/1G/2.5G/5G/10GBASE-T)
10-Gigabit fiber SFP+ ports 1 (1G/10GBASE-X SFP+)
Switching fabric 78 Gbps line rate
Number of PoE ports 8
PoE+ (802.3at) 8
Total PoE Power budget (Watts) 180W
Max MAC entries 16K
Buffer size 3MB
VLAN (Number Supported) 256
VLAN routing Yes
Dynamic VLAN assignment Yes
MLD Snooping Yes
Static route Yes (32 IPv4 + 32 IPv6)
Host ARP table Yes (512)
DoS Prevention Yes
Internal/External Internal; 100-240VAC, 50-60Hz
Max Consumption (Watts) 234.31W
Acoustic Noise Level @25C (dBA) 28.8
Operating Temperature 0° to 50°C
MTBF at 25°C 376,434 hrs
Physical Specifications
  • Dimensions: 328 x 169 x 43 mm
  • Weight: 1.9 kg
Warranty 10-years Limited Hardware Warranty
