ANT24501B - Dual Band Antenna for WND930

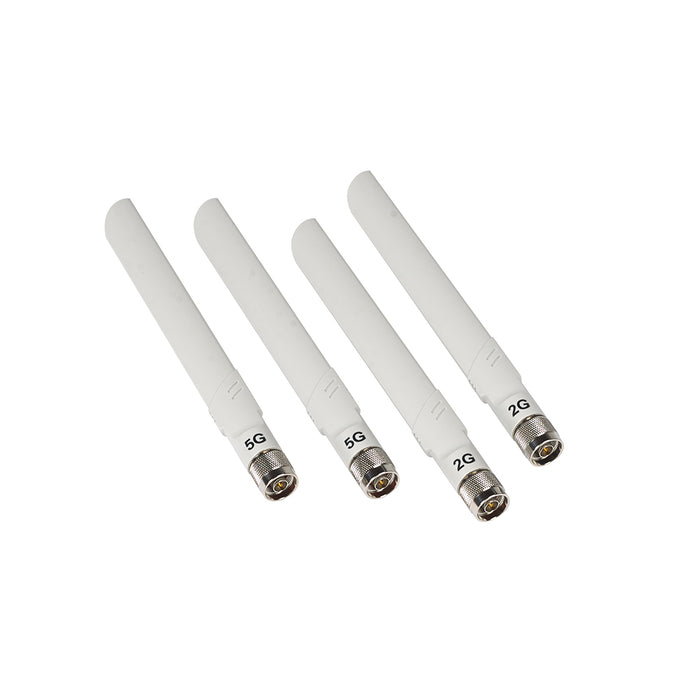

Each bundle kit comes with quantity 2 of 2.4 GHz (5 dBi) and quantity 2 of 5 GHz (7 dBi) antennas. Optimal for providing omni directional wireless access with the WND930 Outdoor Access Point. Leveraging the internal directional antenna for point to point mesh while providing wireless client access around the Outdoor Access Point with the ANT24501B antenna bundle.
The ANT24501B antenna bundles provides omni directional access with extended range for client connectivity in a hotspot deployment scenario. Simply connect the 2.4 and 5 GHz antennas to the WND930 Outdoor Access Point to achieve optimum performance at wireless 802.11n speed. Each antenna bundle comes with 2 units of 2.4 GHz antennas (5 dBi) and 2 units of 5 GHz antennas (7 dBi). The small form factor the lightweight antennas allows the installation to be simple and intuitive. The ANT24501B antenna bundle is rated to operate in outdoor deployment in extreme environmental condition that matches the specification of the WND930 Outdoor Access Point.
| Product Number | ANT24501B |
| Wireless Mode | 802.11 a/b/g/n |
| Typical Application | Outdoor for wireless client access |
| Frequency range | 2.4 to 2.5 GHz and 4.9 to 5.85 GHz |
| Gain | 5 dBi (2.4 GHz) and 7 dBi (5 GHz) |
| Beam Width | Horizontal 360°,Vertical 11° |
| Polarization | Linear; Vertical |
| Operating Temperature | -20℃ to +60℃ |
| Physical Specifications |
|
| Connectors | N-Plug Male |
| Package Contents |
|
