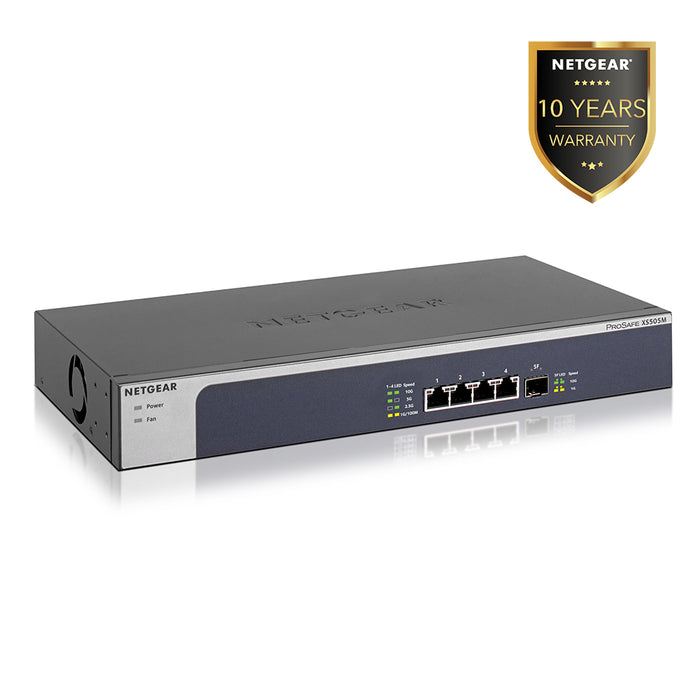

NETGEAR 5-Port 10G Multi-Gigabit Ethernet Unmanaged Switch (XS505M) - with 1 x 10G SFP+, Desktop/Rackmount, and ProSAFE (Warranty 10 Years)
The XS505M come with Copper Ethernet ports that provide either FastEthernet, 1-Gigabit, 2.5-Gigabit, 5-Gigabit or 10-Gigabit connectivity, as well as 1 SFP+ Fiber port with 1-Gigabit or 10-Gigabit connectivity.
Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the XS505M gives the exact speed required, no downgrade.
Also, the new NETGEAR Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6 wiring, therefore reducing wiring costs and hassle.
Automatic connectivity to your router or modem of 4 or 7 additional wired connections. No need for an IT expert!
- All speeds welcome
Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automatically
- Mounting flexibility
Small and silent desktop or rackmount form factor for quiet operation – Adapts to your needs and configuration in any environment
- Energy efficient
Switches automatically adjust power consumption according to the link status and cable length.
|Model Description||NETGEAR 5-Port 10G Multi-Gigabit Ethernet Unmanaged Switch (XS505M)|
|100M/1G/2.5G/5G/10G RJ-45 copper ports||4|
|10G SFP+ ports||1|
|Packet buffer memory||128KB|
|MAC Address database size||2Kg|
|Number of priority queues||8|
|Jumbo Frame Support||Up to 9K packet size|
|Fan(s)||1 Low-Noise Active Fan|
|IEEE 802.3az (Energy Efficient Ethernet)||Yes|
|Max power consumption (Watts)||22.5W|
|LEDs||Power,Fan, Speed, Link/Activity|
|Acoustic noise level @ 25° C (dBA)||28.8dB|
|Operating Temperature||0 ~ 40° C|
|MTBF (@ 25° C)||22.5dBA|
|Electromagnetic compliance (A or B)||B|
|Warranty||10-year Limited Hardware Warranty|
