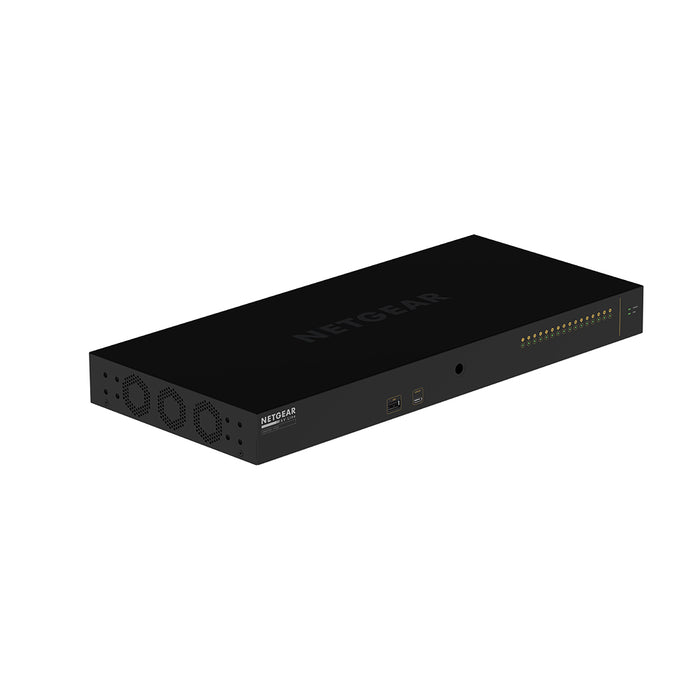

(Pre-Order) AV Line M4250-16XF (XSM4216F) 16x1G/10G Fiber SFP+ Managed Switch - Garansi 10 Tahun

Terjual habis
Rp 0

Deskripsi

Introducing the NETGEAR AV Line of M4250 Switches, developed and engineered for audio/video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market, combining years of networking expertise in AV with M4300 and M4500 series with best practices from leading experts in the professional AV market.

AV codecs generally use 1Gbps or 10Gbps per stream and the AV Line of M4250 targets the widespread 1Gbps codecs. PoE+, Ultra90 PoE++ and rear-facing ports ensure a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately.

For video the M4250 offers profiles for NVX, AMX, Q-SYS, NDI, Dante etc. as well as audio/ video/control mixed profiles. When multiple switches are used, NETGEAR IGMP PlusTM brings automation for you to just connect them together, or with M4300 and M4500 switches.

Fitur
    • Pre-configured for out-of-the-box use

NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations

    • Dedicated AV web-based GUI interface

Unique interface designed for the AV professional with color-coded, port-based profiles

    • Profiles for common audio protocols

Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license

    • Video profiles built-in

Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed

    • Rackmount versatility

1U, 200mm deep rackmount with all power and Ethernet ports on the back

    • Reversed mounting possibility

Possible reversed mounting with ports in the front including recessed mounting to protect cables

    • Universal mounting availability

Mounting outside the rack made possible with bottom M5 and front M10 threaded holes

    • Adjustable fan functionality

Quiet mode with 56.7dB@25ºC (all ports used), fanless mode with max 25ºC ambient, 75ºC internal sensor and 8 ports SFP+ used

Spesifikasi Teknis
Product Number AV Line M4250-16XF (XSM4216F)
Model Description 16x1G/10G Fiber SFP+ Managed Switch
Primary Port Speed 1 Gigabit
Number of Ports 16 (1G/10G Fiber SFP+)
IGMP Support Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support Yes, up to 12kb
AVB Support Yes. Electronic license required, activation key sent via email (AVB4216F-10000S)
Acoustics Fanless or 56.7dB@25ºC
Power Consumption
  • System Full Load: 47.84W/163.33Btu/hr
  • Standby without any port connection: 19.269W/65.78Btu/hr
Physical Specification
  • Dimensions (WxDxH) : 440 x 200 x 43.2mm
  • Weight : 2.80Kg (6.17lb)
What's in the Box
  • M4250-16XF (XSM4216F)
  • Power cord(s)
  • Console USB Type-C and RJ45-DB9 cables
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting
  • Rubber footpads for tabletop installation
  • Installation guide
Warranty 10 Years Limited Hardware Warranty
