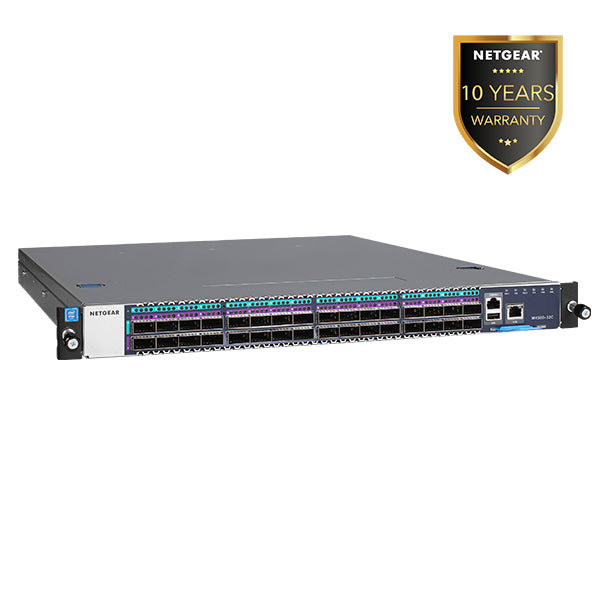

Netgear CSM4532 - M4500-32C 100G MANAGED SWITCH (Warranty 10 Years)

Sold out
Rp 826.903.000

These switches combine the configurability of a matrix switcher with the power and scalability of Ethernet to support hundreds of AV over IP endpoints. M4300 and M4500 switches offer IGMP Plus and greatly simplify system architectures at a dramatically lower price point.

  • Pre-configured for out-of-the-box use - NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations
  • Cost effective aggregation - Cost effective 100G aggregation and 10G access layer for AV deployments and redundant spine & leaf topologies
  • Simplified system architecture - Optimized for "Spine and Leaf" redundant AV installations, with or without MLAG between spine switches
  • High capacity for AV over IP streams - Up to 320 TX / 320 RX (10 Gigabit) nodes all line rate with each other in a redundant spine and leaf architecture
  • VLAN configuration flexibility - IGMP Plus is default on VLAN 1 out of the box and can be configured on another VLAN for automatic IGMP across switches on that VLAN
  • Power and fan redundancy - 2 power supply units (APS750W) and 6 redundant fan trays (AFT402) pre-installed for 1+1 power and 4+2 fan redundancy
Spesifikasi Teknis
Product Number CSM4532
Model Description M4500 Managed Switch with 32x100G QSFP28 ports
Acoustics 64.0dB @ 25°C (77°F) - the noise is reduced when the two PSUs connect to a power source
Power Consumption (Max) 426 Watts
100G QSFP28 Ports 32 QSFP28 ports (1x100G default mode, other modes can be 1x50G, 1x40G) PSU and Fans : 2 modular Power Supply Units and 6 modular Fan Trays come pre-installed
Management CLI only (local console, telnet port 1223 and SSH port 1234)
Management Ports 1G Ethernet service port for out-of-band management (OOB, RJ45). RS232 straight-through serial RJ45 for local management console
Form Factor Full width 1U (508mm depth) with two mounting ears (front) and rail kits (back)
Warranty 10 Years Limited Hardware Warranty
